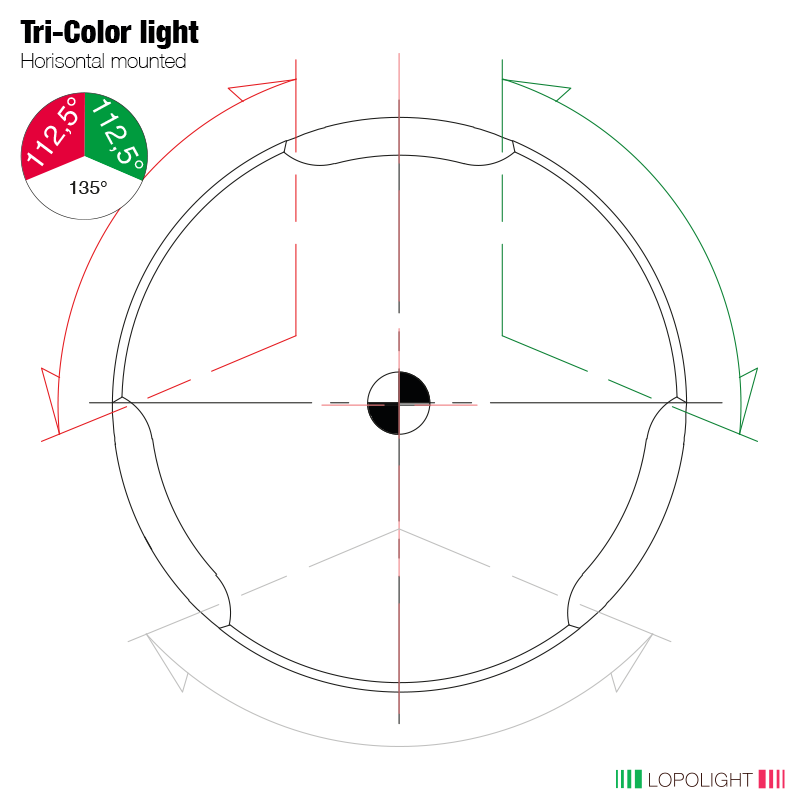

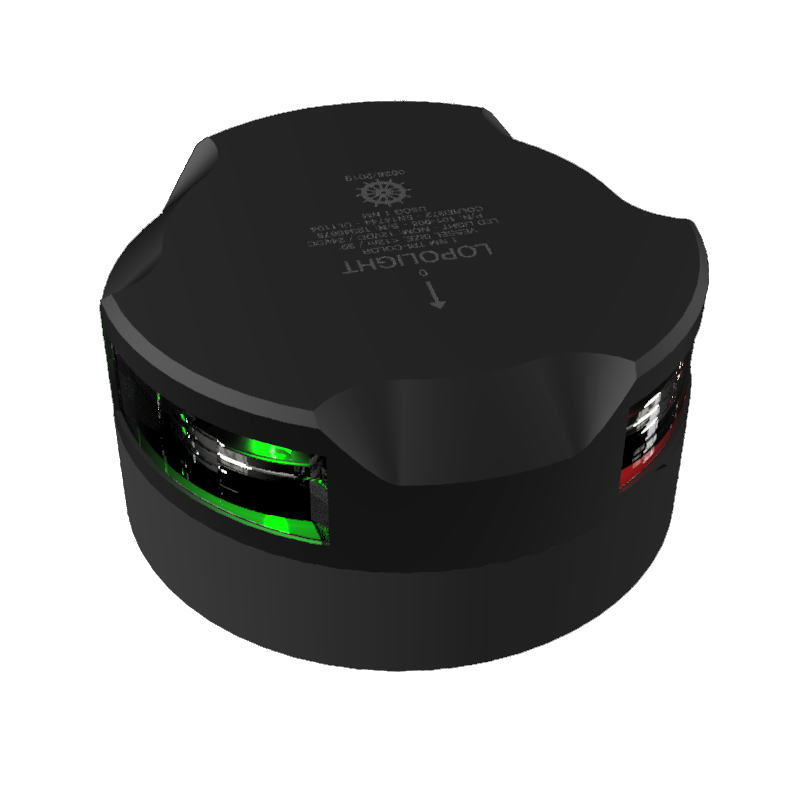

Tri-color, black anodized
P/N: 101-005-B
Tri-color, silver anodized
Horizontally mounted with 0,75m cable
Number
101-005-B
Dimensions metric
Ø92,5mm x 46mm
Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Dimensions imperial
Ø3.6" x 1.8"
Approved to
COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,BV,RINA,LR
Included In Package
1 Navigation light,precabled with 0.75 meter shielded marine grade cable,Installation guide
Operating temperature
-25°C to 55°C
Mounting
Horizontal
Operating Voltage
10-32VDC
EAN
5704438010314
IP rating
IP68
UPC Code
879343010317
Connection
0.7m cable
Current consumption (mA @ 12VDC)
150
Current consumption (mA @ 24VDC)
81
Weight (Kg)
0.53 Kg
Weight (Oz)
18.69 Oz
